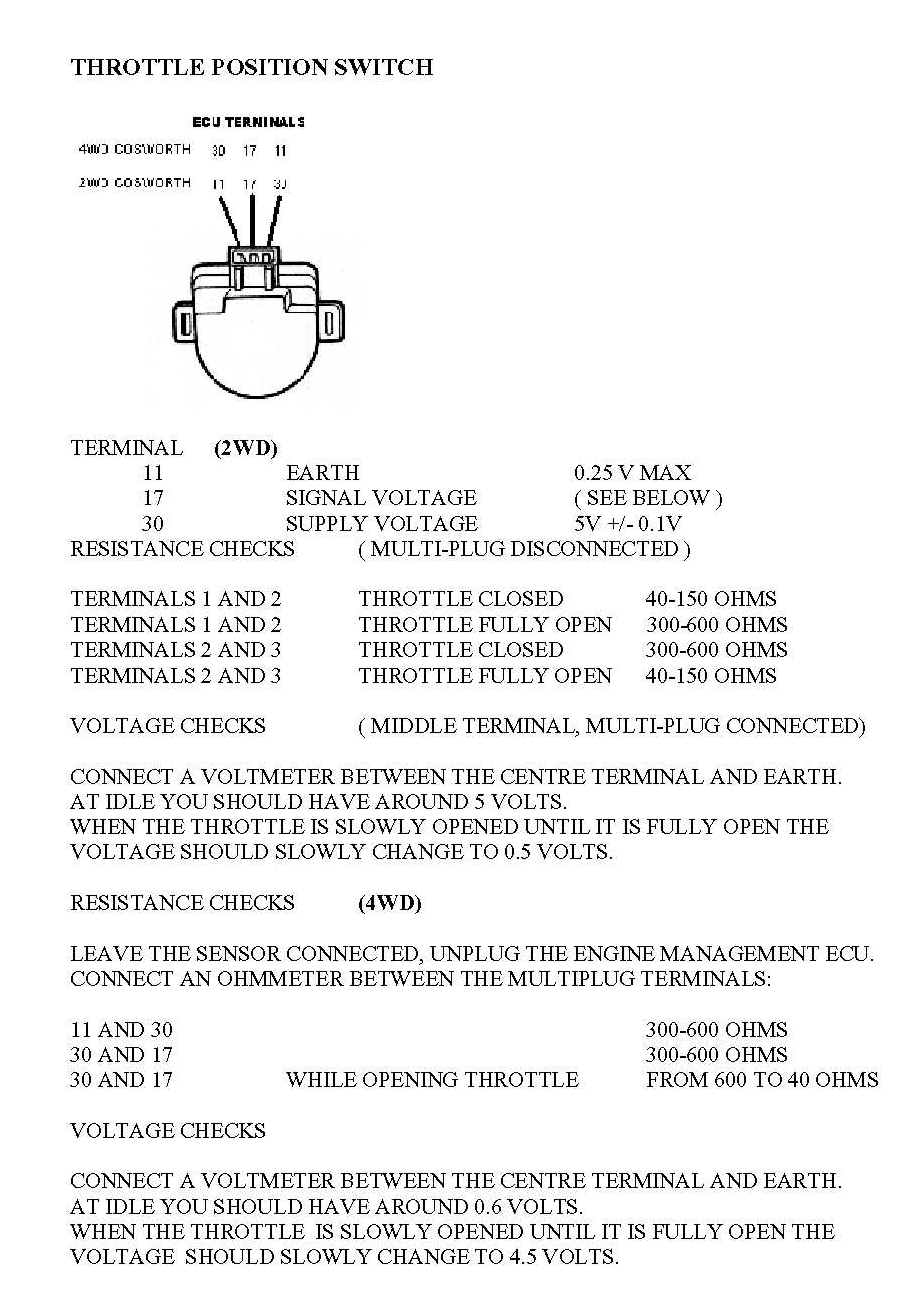

Det er også feil. 2wd har annet oppsett en 4wd. På 2wd skal tps vise +5v ved stengt gasspjeld. Dette er det samme som går inn på tps'n. Med andre ord, en åpen krets. Her det viktig at TPS justeres slik at den minste bevegelse på gasspjeldet dropper spenninga fra +5v til +4,4v. på full gass skal den vise +0,35v. 4wd: PF09 - This sensor is just a variable resistor and the extra programming capacity in the level 8 ecu is able to automatically calibrate the closed throttle position. The calibration takes place during normal driving by detecting the lowest stable voltage from the tps (which should be the closed position) and it then sets the threshold to that value plus a few millivolts. Because the voltage should never be 0v or 5v, unlike the PF01, then an error can be flagged up if they do to show a tps error and the program modified to ignore it. The tps is wired with the supplies reversed compared with the level1 / level6 so the voltage increases with throttle angle. Med andre ord, tps er selvjusterende på P8 ECU. Bruker du en slik på en L6 eller L1 vil ECU få feil info.
